High speed visual counting packing equipment manufacturer.
1 Years
| Ask Lasest Price | |
| Brand Name : | DGAX |
| Model Number : | DenT |
| Certification : | CE |
| Price : | Contact Us |
| Payment Terms : | T/T |
| Supply Ability : | 100sets/month |
| Delivery Time : | 45-60days |
The visual inspection machine is a device that uses optical imaging technology and intelligent algorithms to automatically detect and screen products.
The visual inspection machine can complete the inspection task of a large number of products in a short time. Unlike manual inspection, it is not affected by factors such as fatigue and emotions, and can work continuously and stably. Taking the food packaging industry as an example, it can inspect hundreds of food packages per minute, quickly screen out problematic products such as loose packaging seals and crooked labels, and greatly improve production efficiency.
The system consists of two workstations which contains inner side and outer side, each with six 2-megapixel or 5-megapixel color cameras distributed at a 60-degree Angle. Each camera uses a low-distortion lens. In addition, the system also features two sets of color lighting systems distributed above and below. It has an independently digitally adjustable lighting system to abnormalities on the basis of detecting the inner and outer defects.

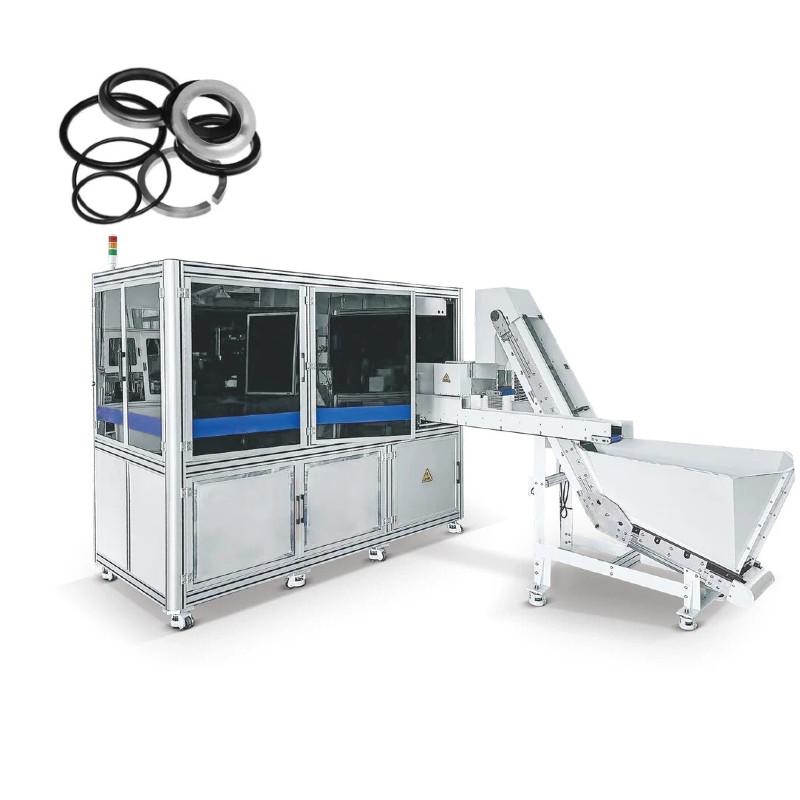

Dent is an optical inspection device for dimensional and surface defected detection of round and shaped parts. It can detect rubber, plastic, PTFT and other materials with high precision within its detection range. These materials are tested for defects at a series of inspection using high-precision industrial cameras. The images obtained by the camera are transferred to the computer managed by the real-time system for image processing without data loss and interference: the user can interact with the operating system in a simple and intuitive way through the operating interface. The detection system is stable, reliable, efficient and high-speed.
| Technical Parameter | 35 | 60 | 90 |
| Material | Rubbers, Plastics, PTFE, Hardware | ||
| Color | Any colour | ||
| Minimum Outside Diameter of Inspected Material (mm) | 5 | 5 | 20 |
| Maximum Outside Diameter of Inspected Material (mm) | 35 | 60 | 90 |
| Minimum Thickness of Inspected Material (mm) | 1 | 1 | 1 |
| Maximum Thickness of Inspected Material (mm) | 9 | 9 | 9 |
| Efficiency | Max 36,000pcs/h (Depends on size and material ) | ||
| System | Feeding device 300L | ||
| Measurement Station | 35 | 60 | 90 |
| Camera | Black&White | Black&White | Black&White |
| Inspected Range (mm) | Φ54 | Φ71 | Φ102 |
| Maximum height Inspected (mm) | 10 | 10 | 10 |
| Image Resolution (mm) | 0.001 | 0.001 | 0.001 |
| Measure Precision (mm) | +/-0.008 | +/-0.012 | +/-0.012 |
| Repeatability (mm) | +/-0.005 | +/-0.008 | +/-0.008 |
| Surface Workstation | 35 | 60 | 90 |
| Camera | Full color | Full color | Full color |
| Quantity of Camera | 4 | 4 | 4 |
| Focal length adjustment | Electricity | Electricity | Electricity |
| High Measure and Inspected station | 35 | 60 | 90 |
| Inspected Range (mm) | 25 | 25 | 25 |
| Image Resolution (mm) | 0.001 | 0.001 | 0.001 |
| Measure Precision (mm) | ±0.003 | ±0.003 | ±0.003 |
| Repeatability (mm) | ±0.005 | ±0.005 | ±0.005 |
| Minimum Inspected inside diameter (mm) | 10 | 10 | 10 |
| Outside Inspected Station | 35 | 60 | 90 |
| Camera | Full Color | Full Color | Full Color |
| Single Camera Inspected range(mm) | 29 | 48 | 48 |
| Image Resolution (mm/px) | 0.012 | 0.020 | 0.020 |
| Minimum Inspected Defective area(mm) | 0.036*0.036 | 0.060*0.060 | 0.060*0.060 |
| Inside Inspected Station | 35 | 60 | 90 |
| Camera | Full Color | Full Color | Full Color |
| Single Camera Inspected range(mm) | 29 | 48 | 58 |
| Image Resolution (mm/px) | 0.010 | 0.019 | 0.019 |
| Minimum Inspected Defective area(mm) | 0.030*0.030 | 0.030*0.030 | 0.030*0.030 |
Electronic components, precision injection molding, hardware fasteners,
sealing rings,rubber silicone,industrial silver contacts, etc.
|
|
